2D PLANS TO 3D VIEWS

Example 2D Floor Plan
Example 3D View - 1
Example 2D Elevation

Are you finding it difficult to visualize

from your plans, how your new house will actually look?

​

For a modest fee, we can produce high quality, photo-realistic 3D floor plans and 3D views of your new home, from the plans.

Scroll Down to Learn More

  • We offer two options, for the costs shown:

Option A

3D Floor Plans, & an Interior View

Option B

Exterior Views, 3D Floor Plans, & an Interior View

USD 30

USD 40

  • Within five business days we will send you high resolution 3D views (similar to those shown above, below and in the examples).

  • Payment is due on delivery.

  • The cost for extra large houses, with an area greater than 700 m2 (7,700 sq ft) will be subject to supply and acceptance of a quote.

  • If you have any questions, comments or requests, please feel free to email us or use the Contact form.

2D Plans to 3D Floor Plans

2D Plan to 3D Floor Layout
Hdg Graphic.png

How to Order

  • Bring up an Order Form by clicking or tapping the ‘Order Form’ button below.

  • Fill out the form, which includes selecting one of the two options.

  • To complete the form, attach an image (one or more) of your 2D Floor Plans (dimensioned plans or a sketch), or alternatively attach a PDF document. The image could be a photo or a scanned image.​

    • Including Elevations with Option B will help to produce the exterior views.

Hdg Graphic.png

Plans Protection

  • The ownership of all copies of the Client’s house plans submitted to John Edmonds Design, remain with the Client, and will be the property of the Client.

  • John Edmonds Design will use those copies solely and exclusively for the preparation of the 3D views for the Client.

  • Upon completion of the work, all copies of the Client’s plans, and any derivatives of those used to create the 3D views, will be deleted from our systems.

Hdg Graphic.png

Deliverables

Upon completion of the work, high resolution (300 dpi, @ 6.5” wide) image files, as described below, will be emailed to the Client.  These files will be in jpg format.

  • Two 3D Floor Plans (and at least one for each floor), similar to the example shown.

Example Floor Layout.jpg

  • One Interior view (similar to the example shown).

Example interior View

Additionally with Option B

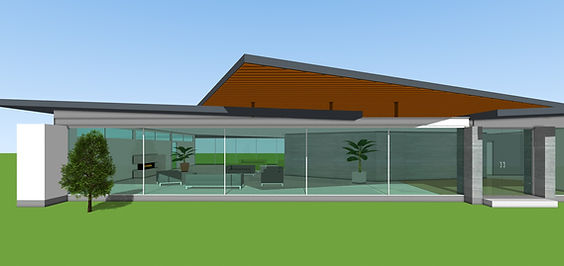

  • Three Exterior Views, including one showing the front of the house (similar to the example shown).

​

Note: If you also provide Elevations, they will assist the creation of the exterior views.

Example 3D View 2

The email containing the 3D images, will be followed by a second email containing an invoice, and a link to a secure payment facility.
